UAX6

MDF

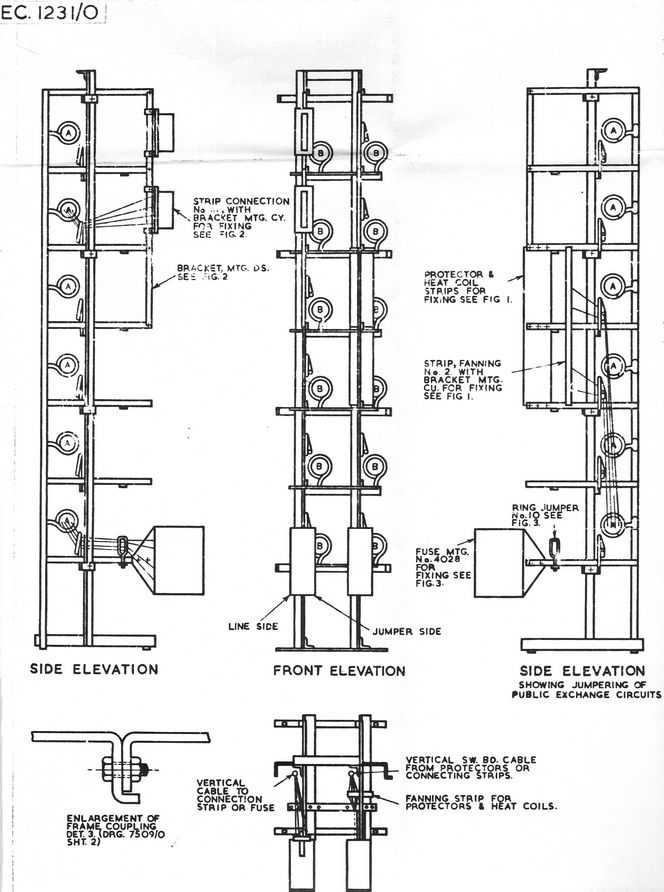

The UAX6 uses a frame distribution 0/240, as shown below.

Frame, distribution 0/240

When the U6 was installed, space was left to allow two of these frames to be bolted together over the cable chase, to allow sufficent space for terminating the full multiple.
